LED DOWNLIGHT VOICE REMOTE 48W (4x12W)

(Innovation)


฿1,999 ฿1,598 20% ส่วนลด

Unique Selling Point :

1.PROCESS AND CONTROL THE LIGHT (4 DOWNLIGHT)  BY AI MASTER

2.COMMAND IS CONTROLLED BY VOICE IN THAI COMMAND IN MANY THAI ACCENT (12 VOICES COMMAND)

3.VOICE REPONSED STATUS BY VOICE "BEEP BEEP"

4.TRIPLE COLOR LIGHT MODE CAN BE SELECTED DAYLIGHT , WARMWHITE AND  COOLWHITE

5.LED LONG LIFETIME 30,000 HRS.

6.SAFE WITH SURGE PROTECTION 1KV


Add to cart

Feature :

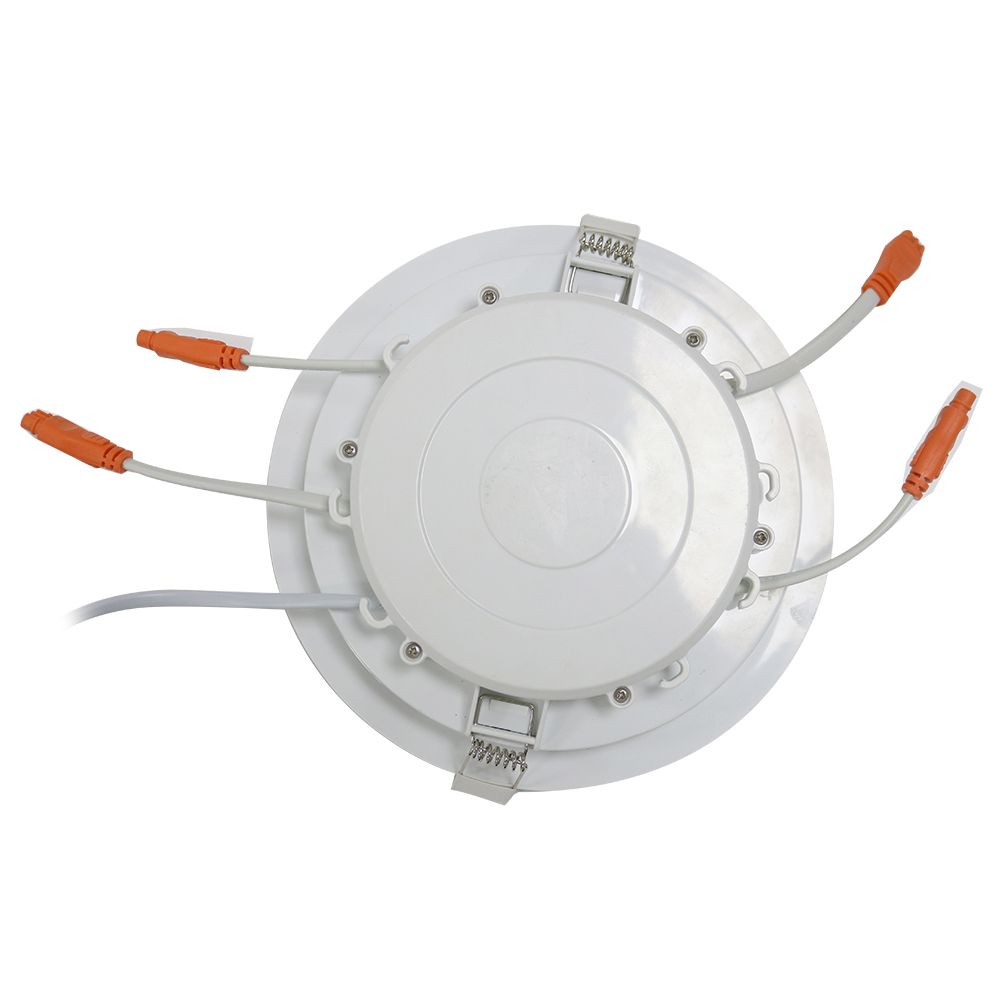

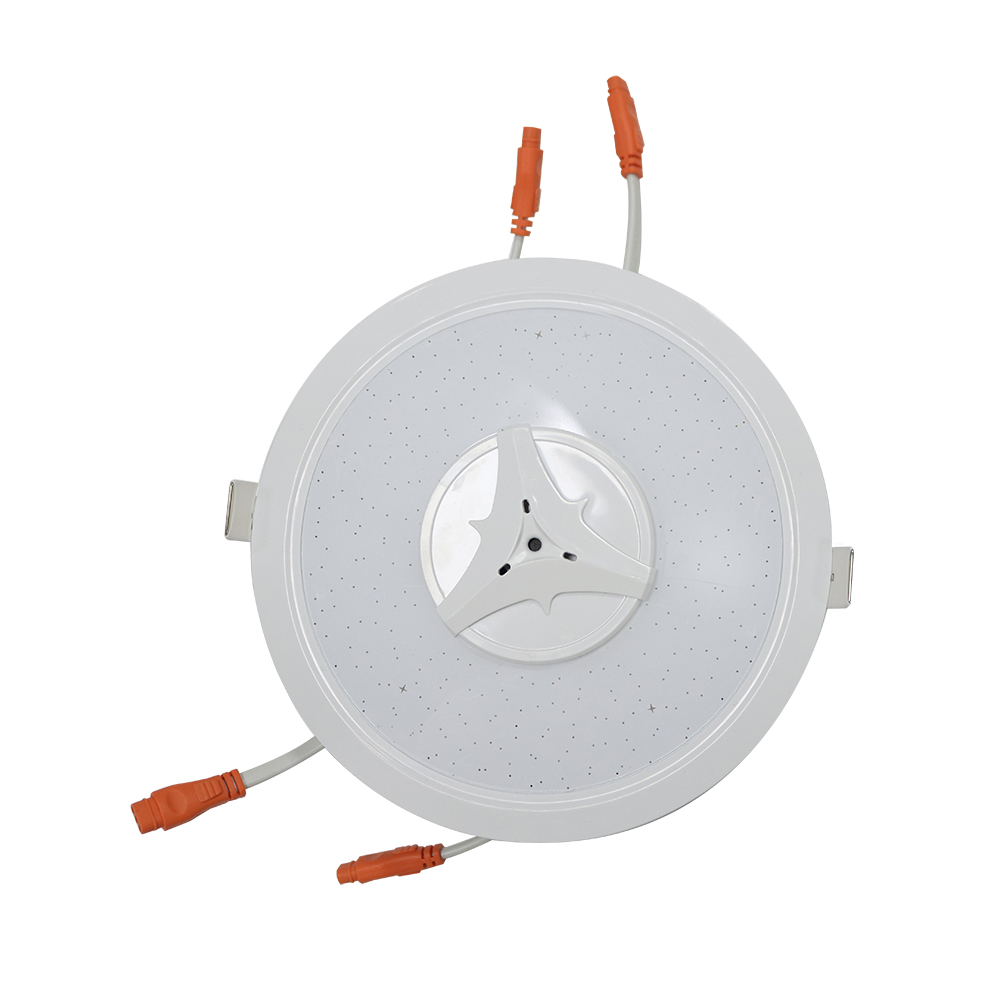

1.MASTER BODY MADE FROM HIGH GRADE QUALITY OF PLASTIC AND INTEGRATED WITH DRIVER

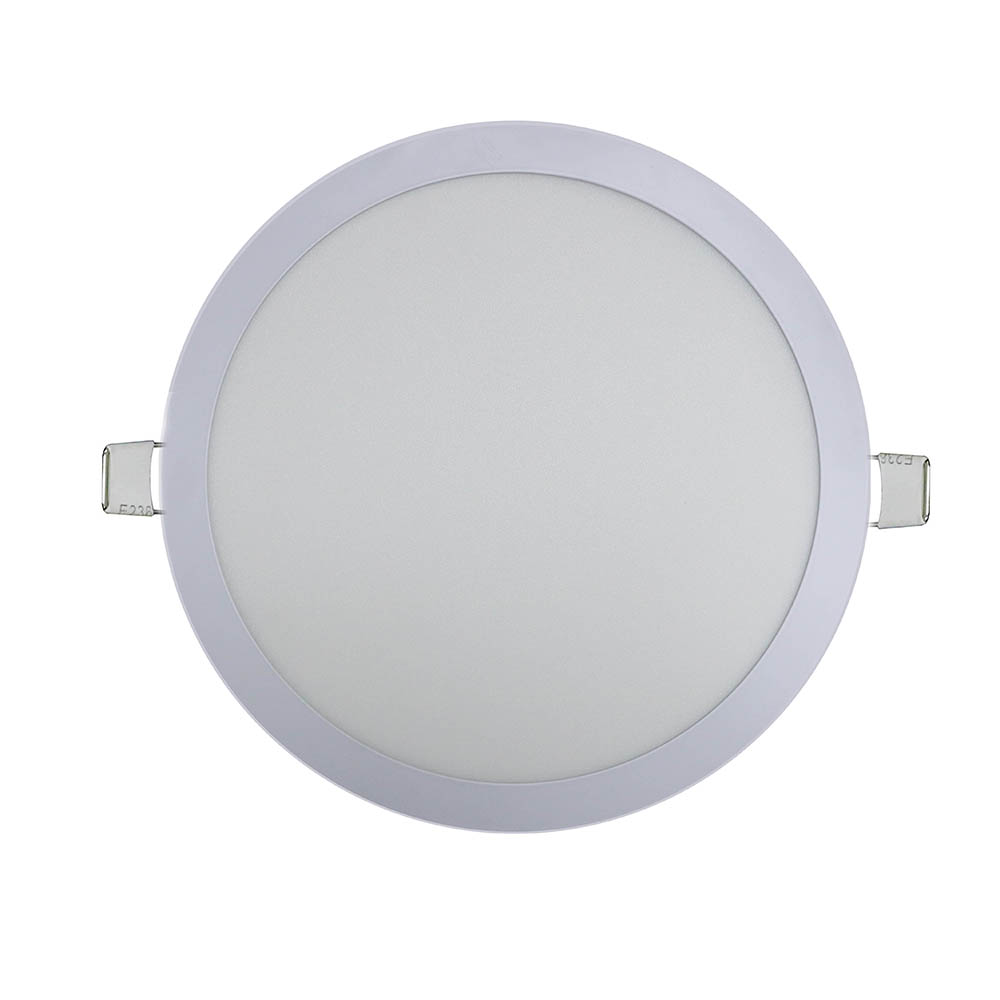

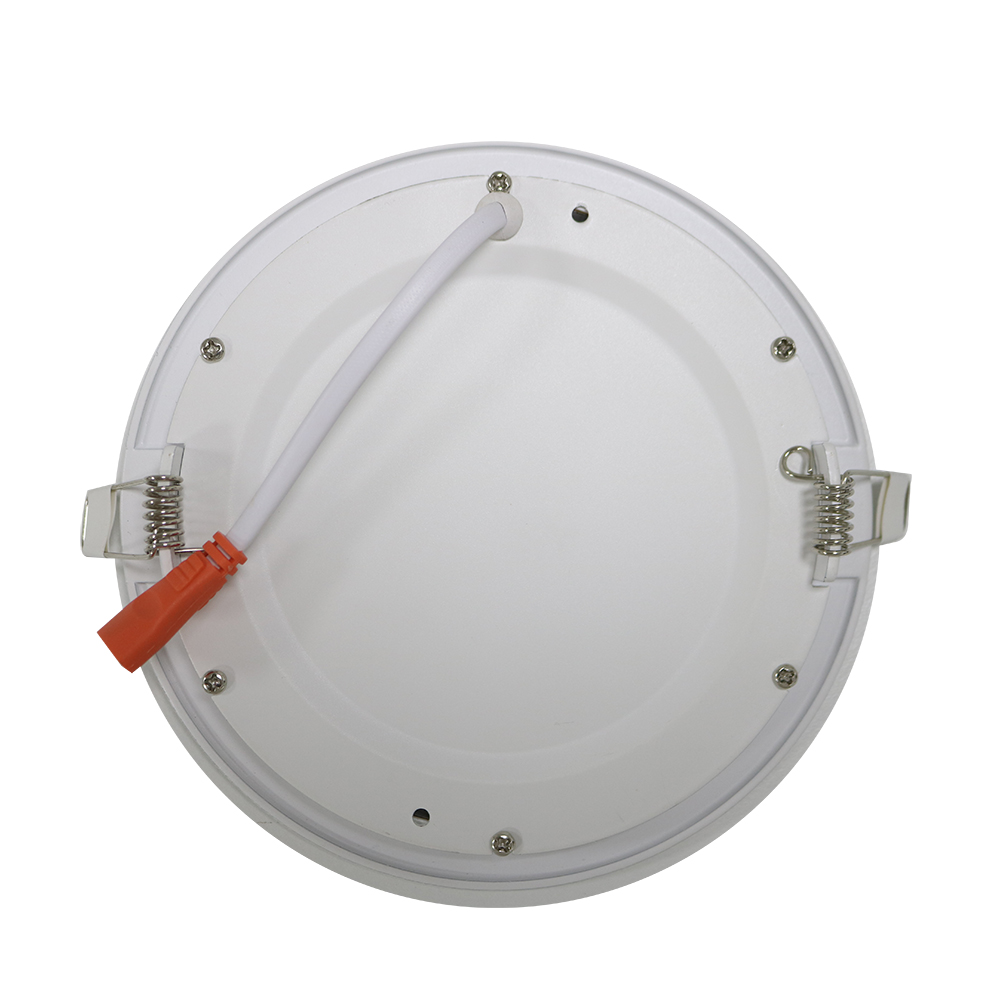

2.DOWNLIGHT MADE FROM ALUMINIUM  MORE STRENGTH ,RUST PREVENTION AND MORE BRIGHTNESS 4X900LM

3.LIGHT DIFFUSION IS COVERAGE TO THE USAGE AREA

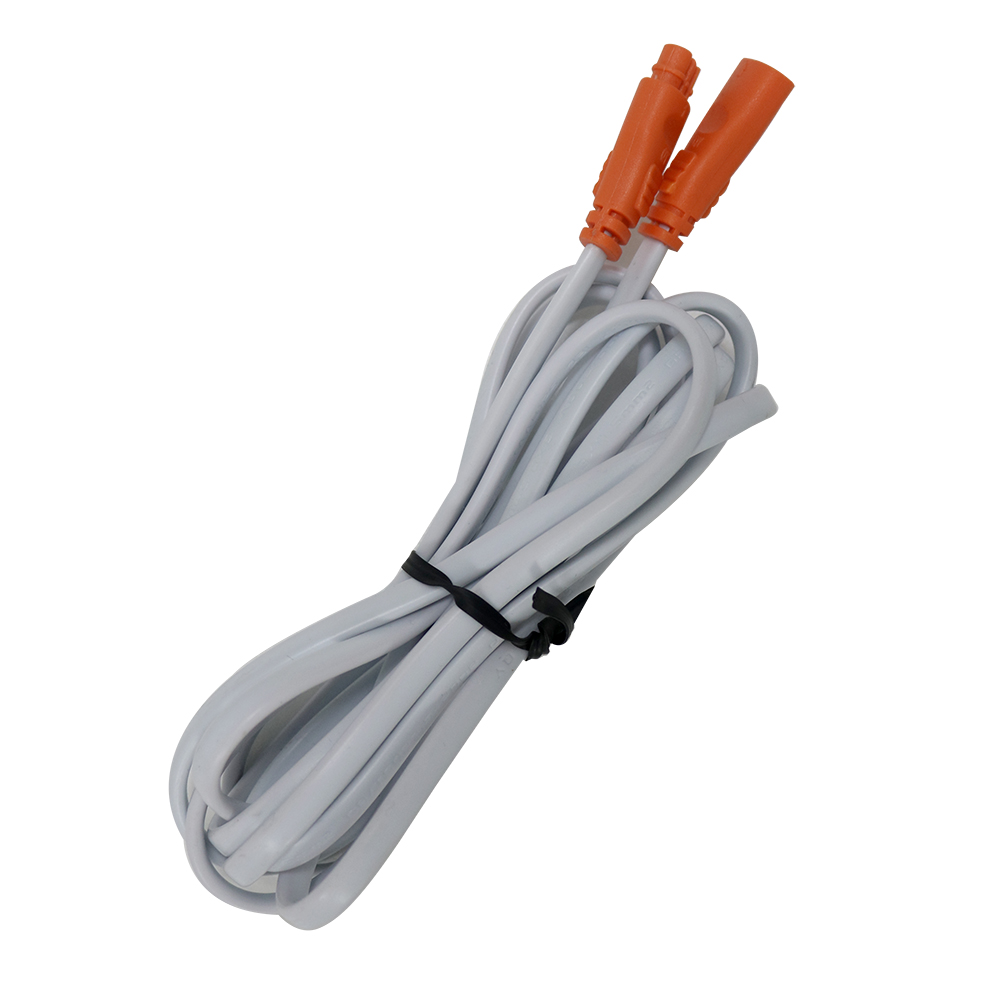

4.EASY AND CONVENIENT TO INSTALL BY SPRING CLIP LOCK (FREE 4 PCS) AND WIRE CONNECTOR (LENGTH 2 METER)

5.PASSED FOR EMC TEST AND TIS.1955-2551 STANDARD


Easy to use :

1.INPUT 220-240V 50/60Hz.

2.SUITABLE  FOR INDOOR USAGE AREA SUCH AS A HOUSE , RESTAURANT , COFFEE SHOP , RESORT AND HOTEL

3.DO NOT INSTALL IN WET  AND HIGH HUMIDITY AREA

4.VARIOUS CONTROL THE AI LAMP BY VOICE REMOTE AND NORMAL  SWITH ON/OFF CONTROL


Installation Giude :

1.PLEASE TURN OFF SWITCH AND BREAKER BEFORE INSTALL OR MAINTENANCE

2.CUT THE HOLE ON CEILING FOLLOW CUT-OFF SIZE 146 MM.

3.CONNECT INPUT VOLTAGE AND 4 WIRES WITH AI MASTER THEN WIRING TO OTHER DOWNLIGHT

4.CONNECT 4 WIRES WITH 4 DOWNLIGHT AND INSTALL TO CEILING

5.TURN ON SWITCH AND START TO VOICE COMMAND


Attention :

1.PLEASE TURN OFF SWITCH AND BREAKER BEFORE INSTALL OR MAINTENANCE

2.PLEASE CONNECT THE WIRE IN TIGHTLY TO PROTECT FROM SHORT CIRCUIT AND ELECTRIC SPARK

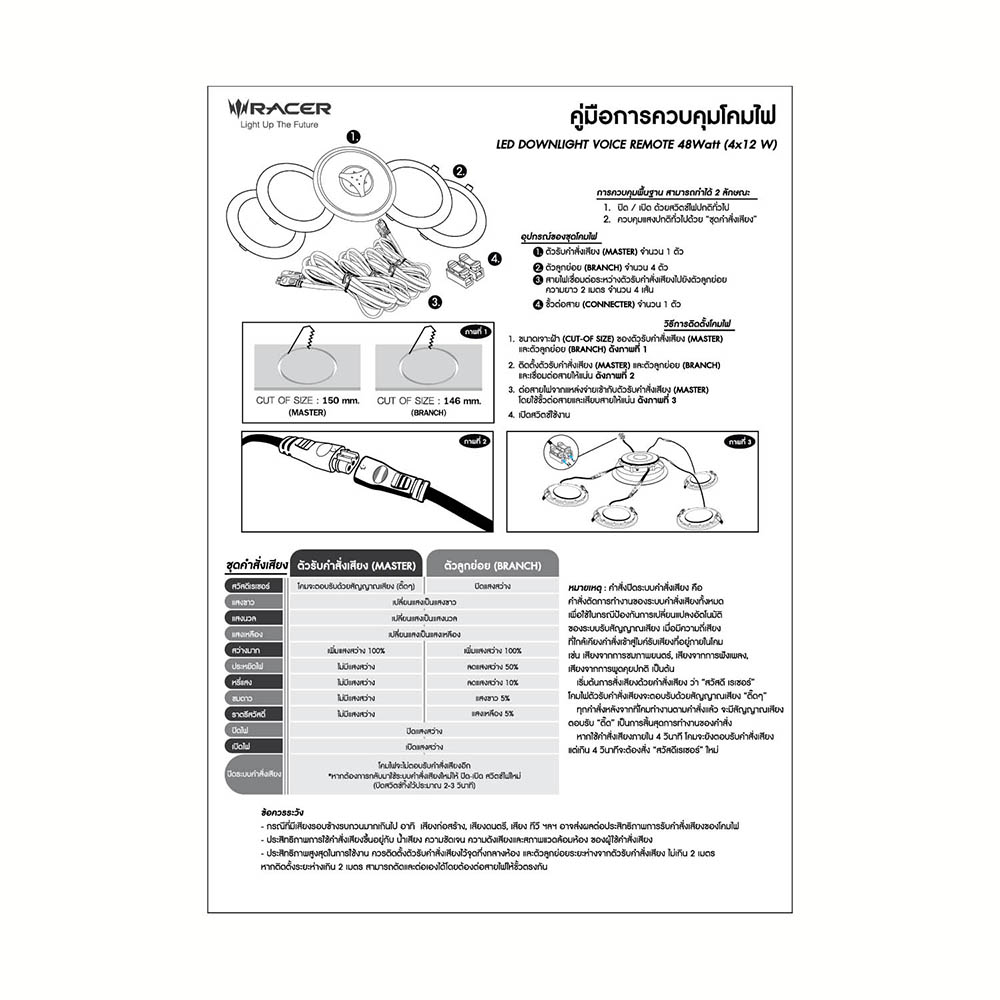

3.PLEASE READING MANUAL BEFORE USING

4.PLEASE BE CAREFUL OF ELECTRIC SHOCK OR LEAK, IF INSTALL IMPROPERLY

5.FOR USE MORE THAN 2 LED LAMP , PLEASE INSTALL DISTANCING AT LEAST 8 METERS

6.FOR BRIGHTNESS COVER USING AREA PLASE INSTALL NOT OVER HIGHT 2.7M

7.VOICE COMMMAND WITH NORMAL TONE WITHIN A RADIUS 4 M.

8.VOICE RESPONSE EFFICACY OF LED LAMP DEPEND ON TONE AND VOICE CLEAR COMMANDING

9.INSTALL IN THE OPEN AND ECHO ROOM, IT MIGHT BE DIFFICULT TO CONTROL SOMETIME. SPEED UP THE SOUND OR TIDY UP THE FURNITURE FIRST AND TEST AGAIN.

Caution :

1.IF INSTALL A LAMP DOES NOT FOLLOW TO THE MANUAL INSTALLATION , IT MAY BE RESULT IN DAMAGE AND WILL NOT BE COVED UNDER THE WARRANTY

2.DO NOT USE WITH ALL DIMMER

3.DO NOT INSTALL IN WET  AND HIGH HUMIDITY AREA


Specification :

1.COLOR : WHITE

2.MATERIAL  : HIGH PLASTIC QUALITY AND ALUMINIUM

3.DIMENSION (WxLXH MM.) : AI MASTER 170x170x50  , DOWNLIGHT 160X160X12

4.WEIGHT (KG) :  0.25 , 0.19

5.CCT : DAYLIGHT / COOL WHITE / WARM WHITE /


Download :
